Composite door measuring guide

Composite Door Measuring Guide

This section is only a guide to help an experienced tradesperson or competent DIYer carry out a survey. We do not accept any liability for inaccurate surveys.

If you do not feel confident enough to install your new composite door, we do offer an installation service to most parts of the UK. Please contact us to find out if we cover your area.

You are measuring the overall width and height of the door including the door, the frame and cill.

Width: Measure in 3 points; top, middle and bottom and take the smallest measurement and deduct 10mm.

Height: Measure again in 3 points; left, centre and right and take the smallest measurement and deduct 10mm.

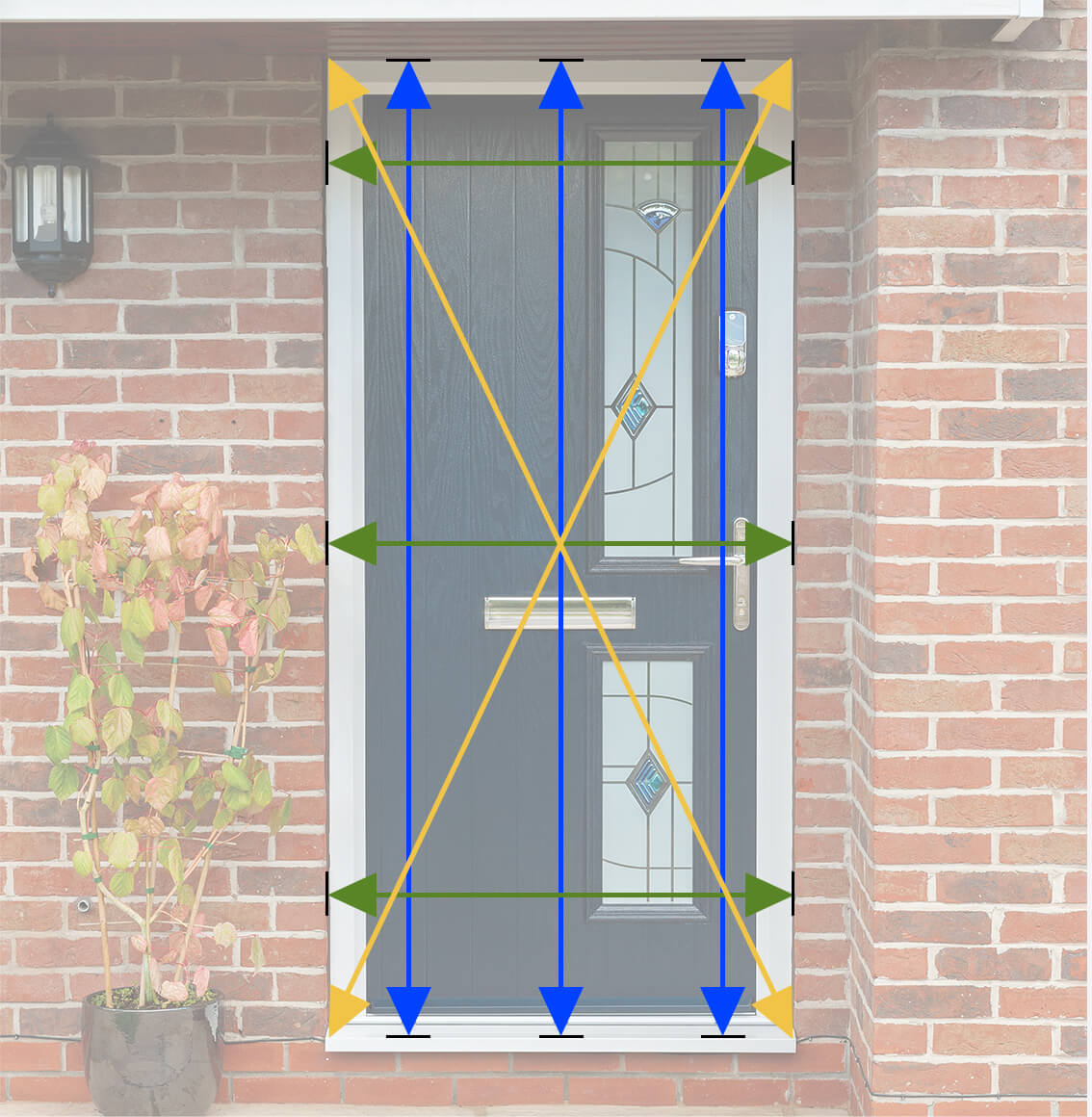

Diagonals: Ensure the opening is square by measuring the diagonals as shown in yellow. There should be no more than 5mm difference between each measurement.

Download PDF Download our measuring guide

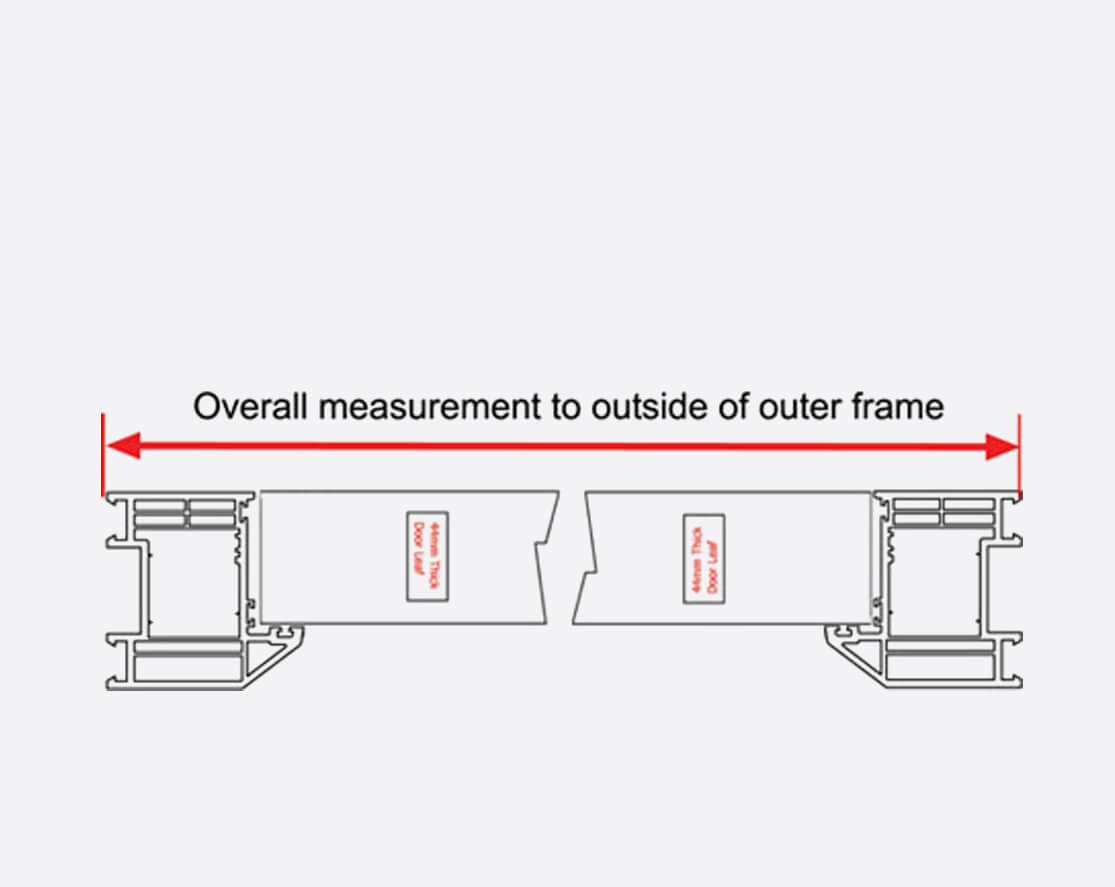

Overall measurements are to the outer edges of the frame.

Outer measurement

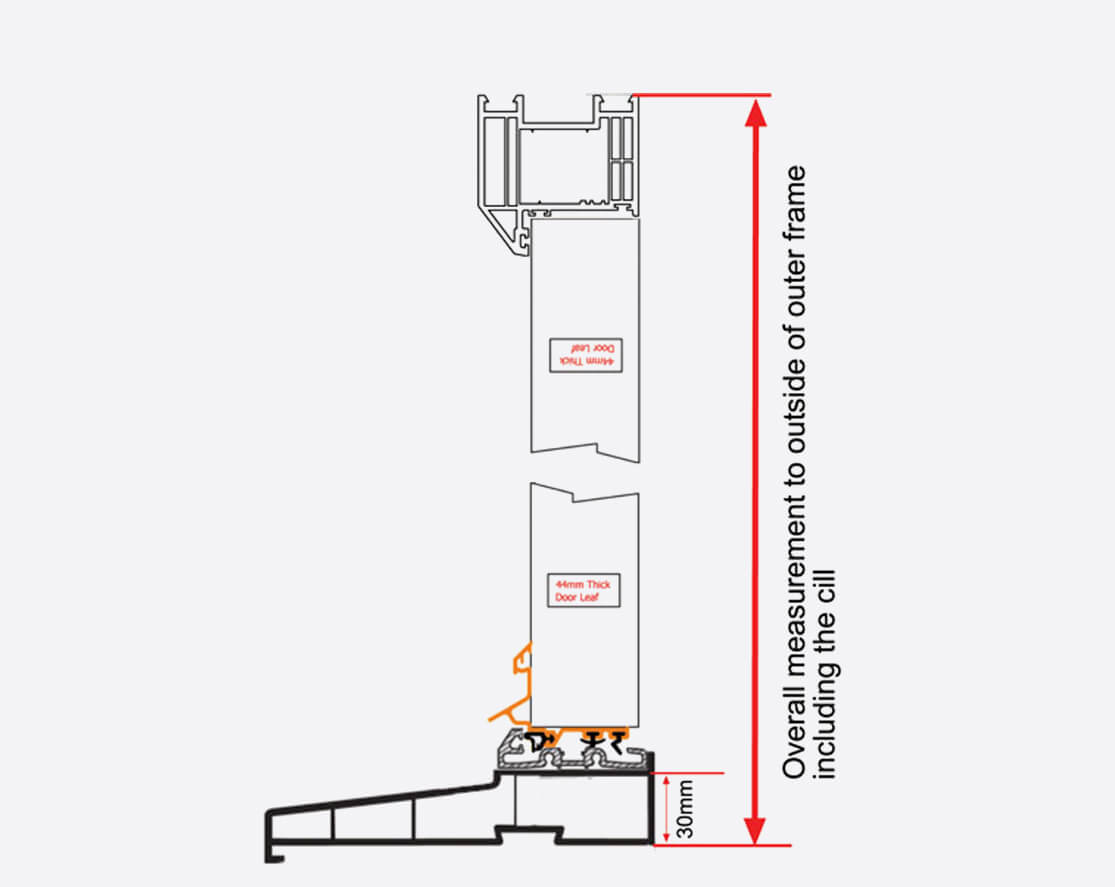

When entering sizes for manufacture they include the cill which is 30mm high if required.

Door measurements

When measuring your existing door aperture check the inside measurements against the outside measurements to check the frame will clear the inside plaster line as shown below.

Plaster Line

If the plaster line or internal wall sits to far in, it will be necessary to use the appropriate addon as shown below.

Door Measurements

However, you may have a box sash scenario when the reverse of the above is shown below. You will need to measure brick to brick externally then add 5-10mm each side so the outer frame sits nicely behind the existing brickwork.

Door Measurements

With a box sash installation the frame can be fixed as follows:
(It will be necessary to remove existing architrave to survey accurately.)

Cill Options

Cill options shown below and typical applications.
Standard cill height is 30mm if required.
